About

A bulldozer is a powerful piece of heavy machinery used primarily for moving large quantities of soil, debris, or other materials. It features a broad, flat blade attached to the front and is typically equipped with tracks for stability and traction on uneven terrain.

• Dozer
• Blade
• Earth Mover
• Crawler Tractor
• Cat (informal term referring to Caterpillar equipment)
• Bull
• Push Cat

Key Features:

Blade:

A heavy, wide metal plate used for pushing soil and other materials, adjustable for angle and height.

Types of Bulldozer Blades

Straight Blade (S-Blade): Best for general earthmoving tasks, the Straight Blade is a flat, short blade with no side wings, making it ideal for basic earthmoving tasks like grading, leveling, and backfilling. Its simple design enables efficient pushing of materials over short distances.

Universal Blade (U-Blade): The Universal Blade has a tall, curved design with large side wings, allowing it to carry and push substantial material volumes over longer distances. Its robust structure is suitable for mining, landfill operations, and forestry applications.

Coal U-Blades: Coal U-Blades are specially designed to handle coal and overburden in mining environments. They are optimized for material retention and durability, making them highly effective in coal mining tasks.

Landfill U-Blades: These blades are engineered for handling a wide range of materials in landfill sites. Their design emphasizes efficient compaction and effective material handling, making them indispensable in waste management.

Reclamation U-Blades: Reclamation U-Blades provide enhanced control and precision, designed specifically for reshaping terrain in land reclamation projects. They are ideal for projects requiring detailed and accurate landform modifications.

Woodchip U-Blades: Designed for forestry operations, these blades feature high sides for effective containment and control of woodchips and other similar materials, ensuring efficient movement and storage.

Semi-Universal Blade (SU Blade): This blade combines the features of the Straight Blade and Universal Blade, offering moderate material pushing capabilities while maintaining precision. It’s ideal for a mix of heavy construction and excavation tasks.

Angle Blade (A-Blade): The Angle Blade is a versatile attachment with adjustable angles, enabling efficient material spreading without frequent directional changes. It’s perfect for road maintenance, trenching, and ditching.

Power Angle Tilt Blade (6-Way PAT): Equipped with six-way adjustment capabilities, this blade allows angling, tilting, and pitching without repositioning the machine. It’s ideal for residential construction, landscaping, and roadwork.

Variable Pitch Power Angle Tilt Blade (VPAT Blade): With advanced pitch adjustment capabilities, the VPAT Blade offers increased versatility, especially for working on steep or uneven terrains. It is well-suited for large-scale grading projects.

Cushion Blade: Featuring cushioning mechanisms, this blade absorbs impact forces, reducing stress on the machine and operator. It’s ideal for heavy construction and demolition tasks in challenging conditions.

Clearing Blade (V-Blade): The V-shaped design efficiently directs material away from the center, allowing for smooth operation during snow clearing or land clearing. Adjustable wings add to its versatility.

Tracks:

Provide better traction on soft or uneven terrain, distributing weight evenly to reduce ground pressure.

• Design: Made from steel, rubber, or a combination, tracks consist of links forming a continuous loop with a tread pattern for grip.
• Weight Distribution: Distribute the bulldozer's weight over a larger surface area to prevent sinking.
• Traction: Enhanced grip allows effective operation on muddy, sandy, or uneven surfaces.
• Stability: Better stability on slopes and rough terrains, reducing tipping risk.
• Durability: Designed to withstand harsh conditions and resist wear and damage.
• Maintenance: Regular inspection and maintenance are necessary for longevity, including checking for wear and adjusting tension.

Click here to know more

Ripper:

A ripper is an attachment used at the rear of a bulldozer to break up hard soil, rock, or other dense materials. It is essential for preparing the ground for further work.

• Design: Typically consists of one or more sharp, heavy-duty tines that penetrate the ground.
• Types:
  • Single Shank Ripper: One large shank, suitable for deeper penetration.
  • Multi-Shank Ripper: Multiple shanks for wider coverage and efficient tearing of surfaces.
• Hydraulic Operation: Many rippers are hydraulically operated for precise control.
• Adjustability: Some rippers can be adjusted for angle and depth, making them versatile for different tasks.

Cab:

Designed for comfort and visibility, featuring controls for operating the blade and ripper.

Click here to know more

Check out this video for detailed info on Bulldozer parts!!

Common Uses:

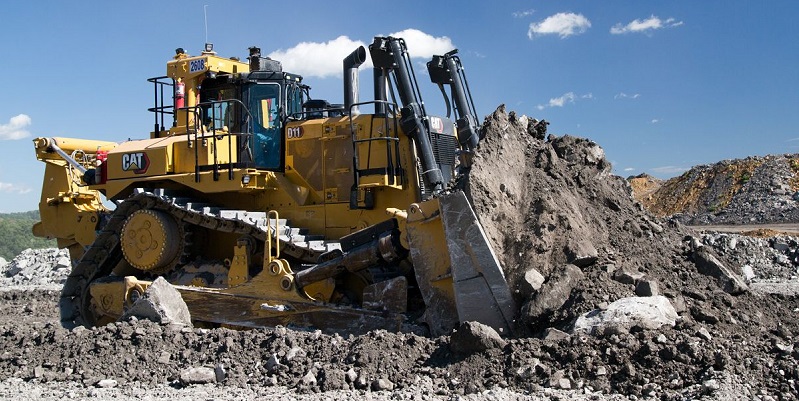

• Earthmoving:

  Ideal for clearing land, grading surfaces, and moving soil or rubble.

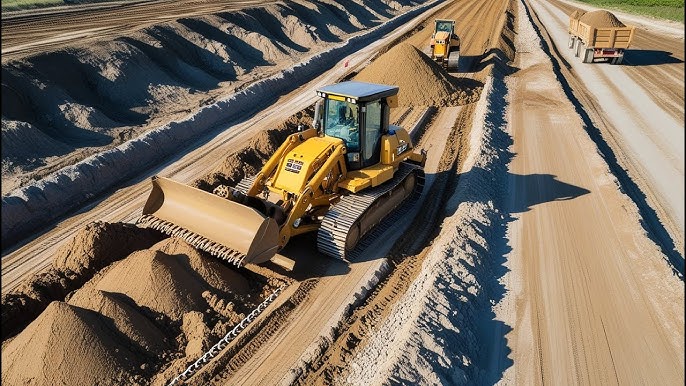

• Construction:

  Used to prepare sites for building foundations and road construction.

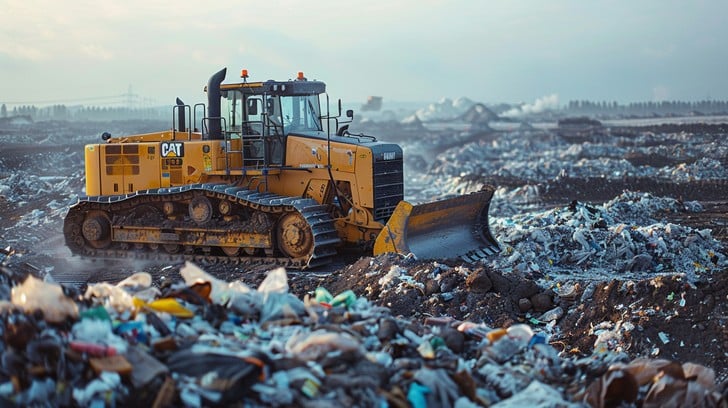

• Landfill Operations:

  Effective in compacting and spreading materials in landfills.

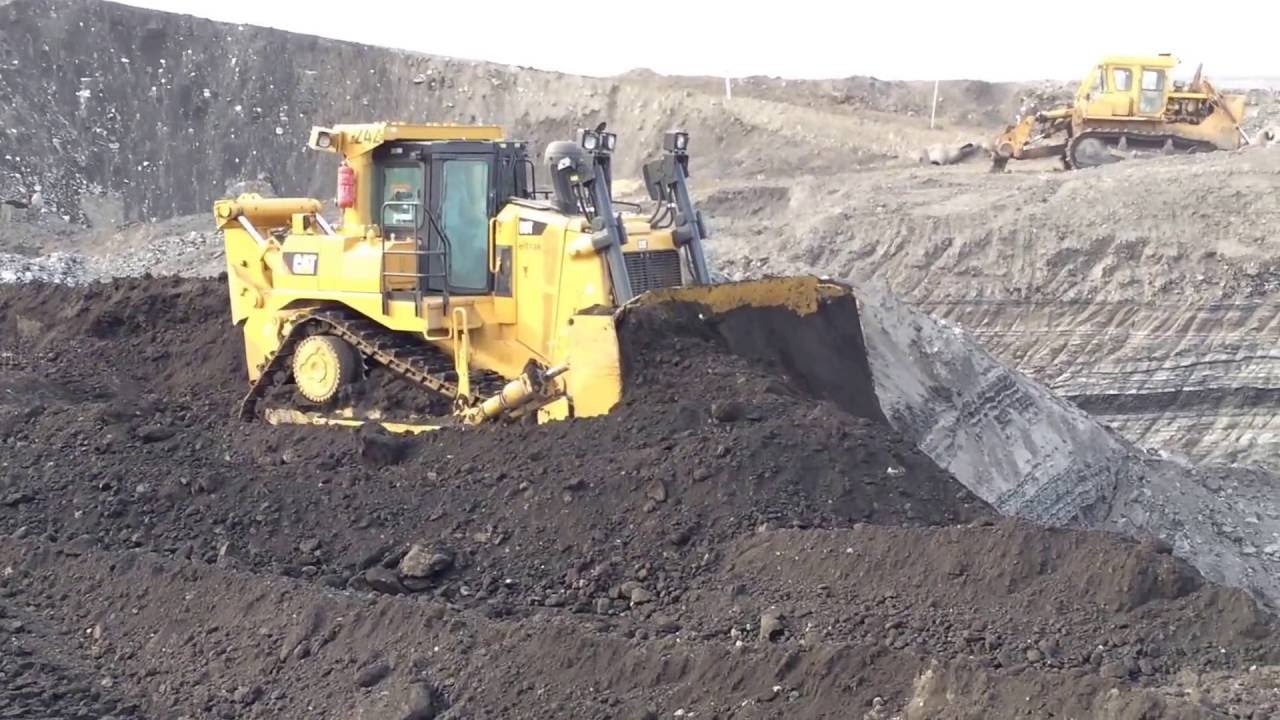

• Mining:

  Useful for removing overburden and pushing materials in mining operations.



Types:

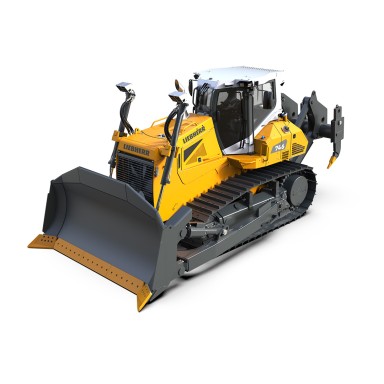

• Crawler Bulldozers: Equipped with tracks, they provide better stability and are suited for rough terrain.

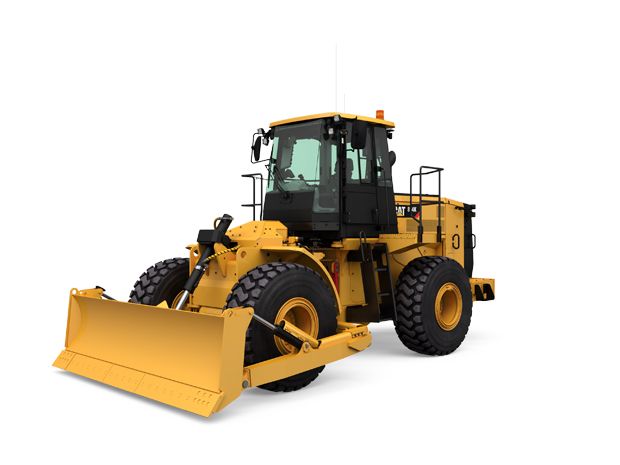

• Wheeled Bulldozers: More mobile and faster on flat surfaces, suitable for urban environments.



• Compact Bulldozers: Smaller and more maneuverable, designed for tight spaces and smaller projects.

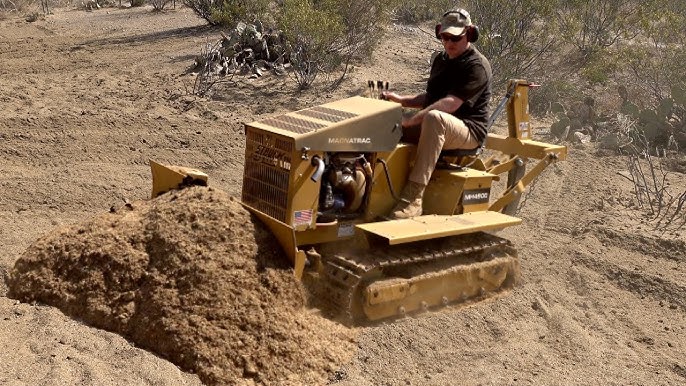

• Mini Bulldozers: These are the smallest type of bulldozer, ideal for small-scale tasks. They are commonly used in landscaping and in areas where space is limited.

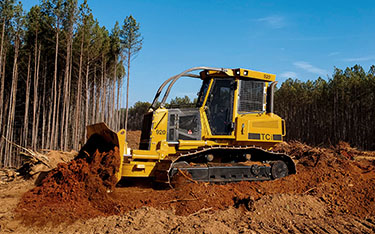

• Forestry Bulldozers: Designed specifically for forestry work, these bulldozers often have reinforced structures and special attachments for clearing land and moving logs.



• High-Speed Bulldozers: These are specially designed for fast movement and efficiency, often used in projects requiring rapid site preparation or road construction.



History

• Early Development

  Late 19th Century: The concept of using a tractor with a blade for earthmoving began to emerge. Steam-powered tractors were among the first machines to perform similar functions, but they were limited in efficiency and power.

• 1920s: The Birth of the Bulldozer

  1923: The term "bulldozer" became widely used, referring specifically to a tractor fitted with a large, heavy blade. The first true bulldozer was developed when a detachable blade was added to a tractor, enabling it to push earth and debris. Caterpillar: In 1925, Caterpillar introduced the first modern bulldozer by attaching a blade to its crawler tractors, enhancing their utility in construction and agriculture.

• 1930s-1940s: Expansion and Innovation

  World War II: The demand for bulldozers surged during the war for military construction projects, such as building airfields and roads. This period saw significant advancements in bulldozer technology. Post-War Era: After the war, bulldozers became essential for infrastructure development, urbanization, and agricultural practices, leading to increased production and innovation in design.

• 1950s-1970s: Advancements in Technology

  Hydraulic Systems: The introduction of hydraulic systems revolutionized bulldozer operations, allowing for more precise control of the blade and attachments. Increased Size and Power: Manufacturers began producing larger and more powerful models, catering to heavier earthmoving tasks.

• 1980s-Present: Modernization and Automation

  Computerization: The use of electronic controls and computer systems improved efficiency and accuracy, enabling features like GPS-guided grading. Environmental Concerns: Modern bulldozers are designed to be more fuel-efficient and to meet stricter emissions regulations. Technological Integration: Today’s bulldozers often come equipped with advanced technology, including remote control capabilities and automated systems, enhancing their versatility and safety.
